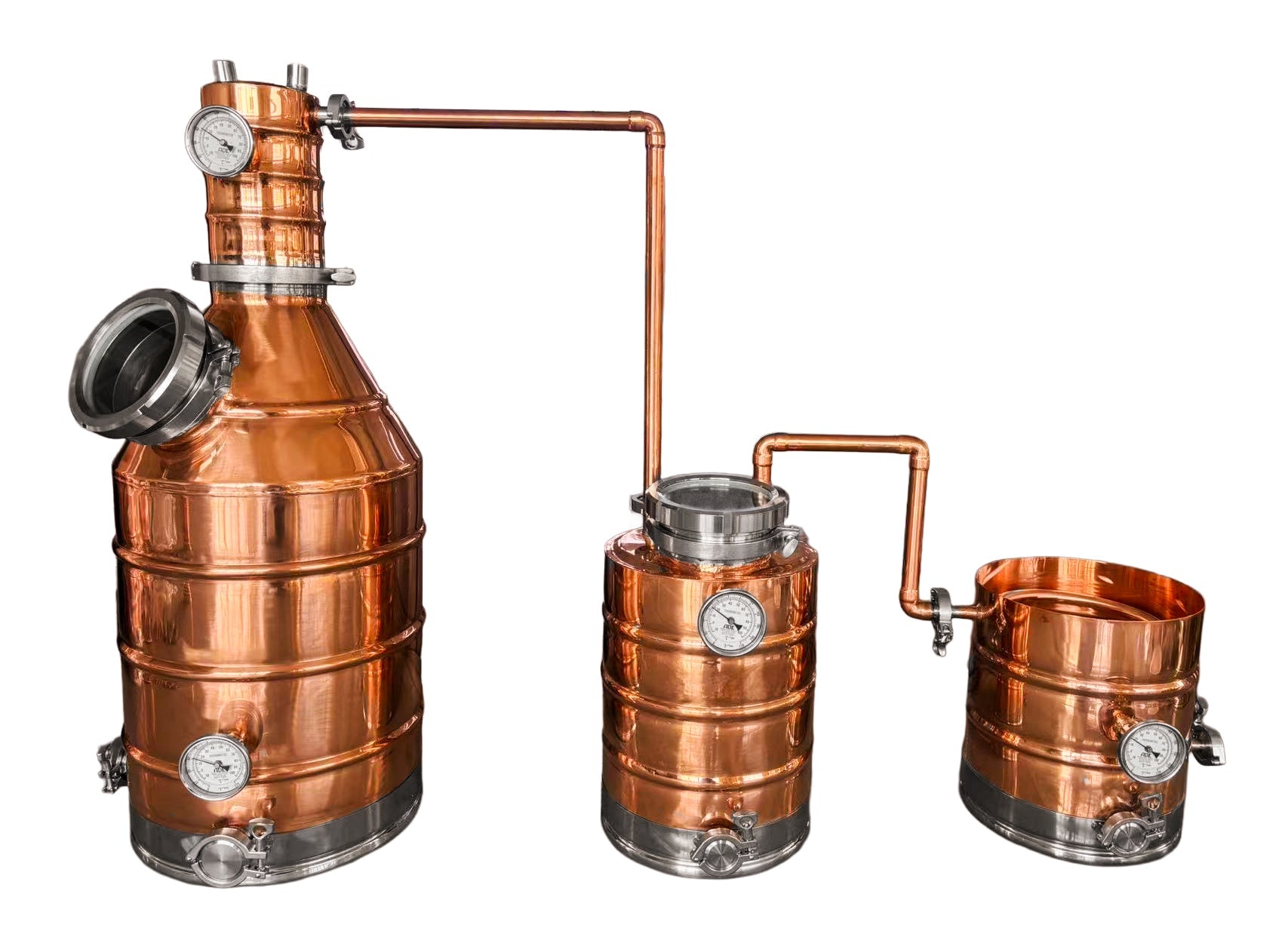

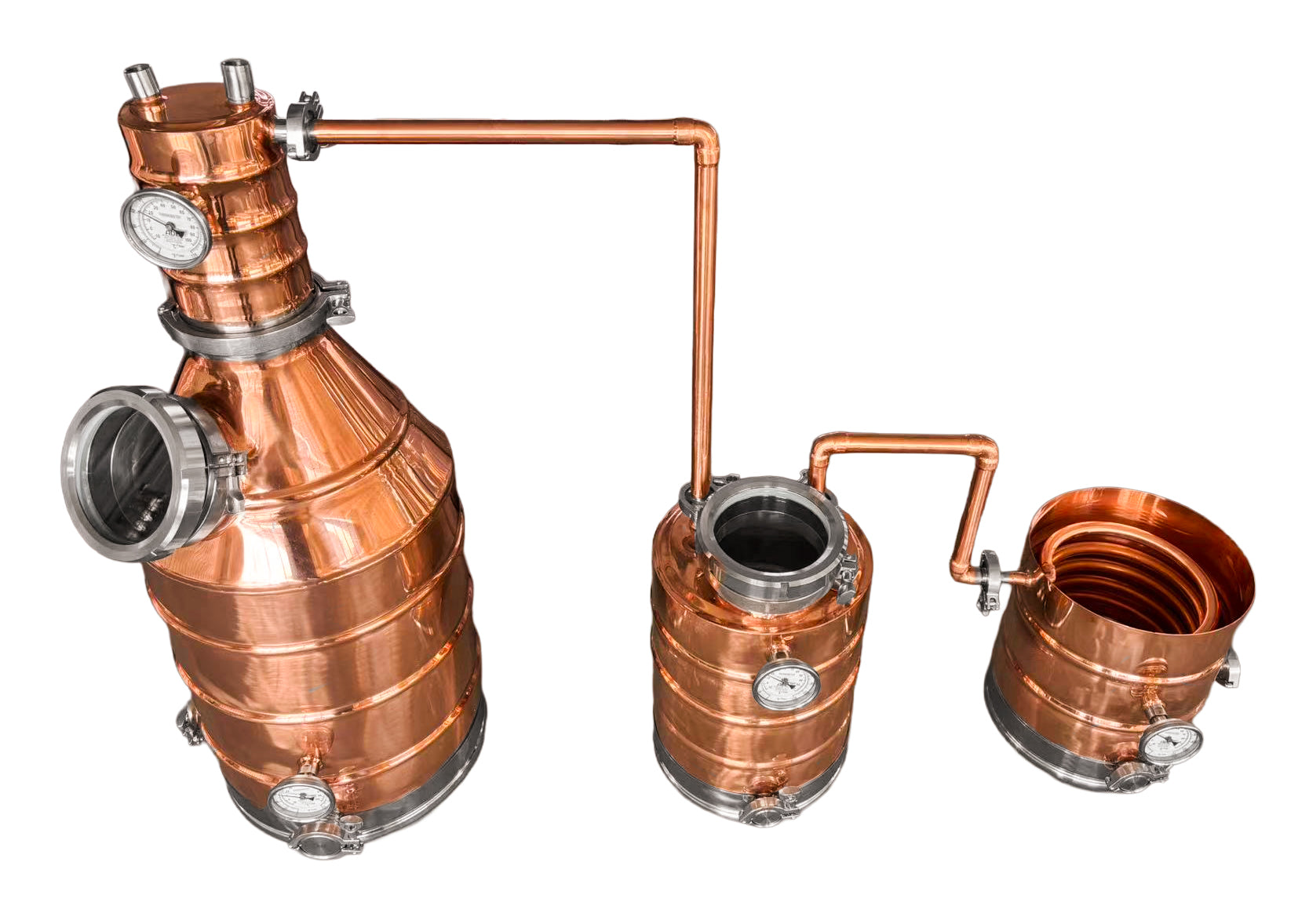

Highlander Series 15 Gallon Copper and Stainless Steel Pot Still with Thumper

$2,052.00
Unit price per

The Highlander Series 15 Gallon Copper and Stainless Steel Pot Still with Thumper is a traditionally inspired, heavy-duty distillation system built for distillers who want increased capacity, classic spirit character, and uncompromising build quality. Designed using proven pot still and thumper principles, this system delivers smooth vapor flow, enhanced proof potential, and consistent results across larger runs.

Constructed from 16 and 18 gauge copper and reinforced with stainless steel components, this still is engineered for strength, thermal stability, and long-term durability. Unlike mass-produced equipment that relies on soldered seams, the Highlander Series uses TIG brazing for all joints, creating cleaner, stronger, and more heat-resistant connections. From the oversized boiler to the properly matched thumper and coil condenser, every component is purpose-built for serious traditional distillation.

Key Features & Build Highlights

Highlander Series traditional pot still design with matched thumper system
Built from 16 and 18 gauge copper for superior durability and heat consistency
TIG brazed joints throughout for maximum strength and leak resistance
15 gallon copper and stainless steel boiler ideal for larger batch distillation
6” tri-clamp combination sight glass and fill port for easy charging and visual monitoring
Boiler thermometer for accurate liquid temperature control
Head temperature thermometer for precise vapor management
1.5" tri-clamp boiler drain with valve for fast, controlled emptying
Dual 2” tri-clamp heating element ports for high-power electric heating configurations
1” lyne arm connection designed for smooth, vapor flow
Matched 6 gallon thumper for higher proof and enhanced flavor development
Thumper features:
- 6” tri-clamp combination sight glass and fill port
- Thermometer for real-time monitoring
- 1.5" tri-clamp drain with valve for easy servicing
Efficient copper coil condenser for reliable vapor knockdown
Copper and stainless steel condenser water bath with thermometer for precise cooling control
Modular tri-clamp construction for easy cleaning, maintenance, and upgrades

Technical Specifications

Series: Highlander Series
Boiler Capacity: 15 Gallons
Thumper Capacity: 6 Gallons
Copper Thickness: 16 & 18 Gauge Copper
Materials: Copper and 304 Stainless Steel
Boiler Sight Glass / Fill Port: 6” Tri-Clamp Combination
Thumper Sight Glass / Fill Port: 6” Tri-Clamp Combination
Boiler Drain: 1.5" Tri-Clamp with Valve
Thumper Drain: 1.5" Tri-Clamp with Valve
Heating Element Ports: (2) 2” Tri-Clamp
Lyne Arm Connection: 1”
Condenser Type: Copper Coil
Condenser Bath: Copper & Stainless Steel with Thermometer
Temperature Monitoring: Boiler, Head, Thumper, and Condenser Bath
Joint Construction: TIG Brazed (Not Soldered)

Why TIG Brazing And Heavy-Gauge Copper Matter

TIG brazing creates joints that are significantly stronger and cleaner than soldered seams, providing superior resistance to heat cycling, leaks, and structural fatigue. When combined with 16 and 18 gauge copper, this construction ensures stable heat transfer, consistent vapor behavior, and a still built to perform reliably for years. This is professional-grade fabrication designed for serious distillation.

What The Thumper Does

The included 6 gallon thumper acts as a secondary distillation chamber positioned between the boiler and condenser. As vapor passes through the liquid inside the thumper, it undergoes an additional distillation step during the same run.

Benefits of using a thumper include:

Higher proof output without sacrificing flavor
Richer, fuller spirit character
Ability to charge with low wines, mash, or botanicals
Improved consistency and smoother cuts

The thumper is properly sized to complement the 15 gallon boiler, ensuring balanced performance and optimal results.

Recommended Heating System

For the power and control required by a system of this size, we recommend pairing this still with:

🔌 240V Manual Still Controller
https://shop.distillery-equipment.com/products/240v-manual-still-controller

Ideal For

Large-batch whiskey, brandy, and rum production
Distillers seeking higher proof with traditional flavor retention
Electric-heated distillation setups
Enthusiasts and professionals who value craftsmanship and durability

This item comes with a 1 year warranty which covers manufacturing defects and leaks.
