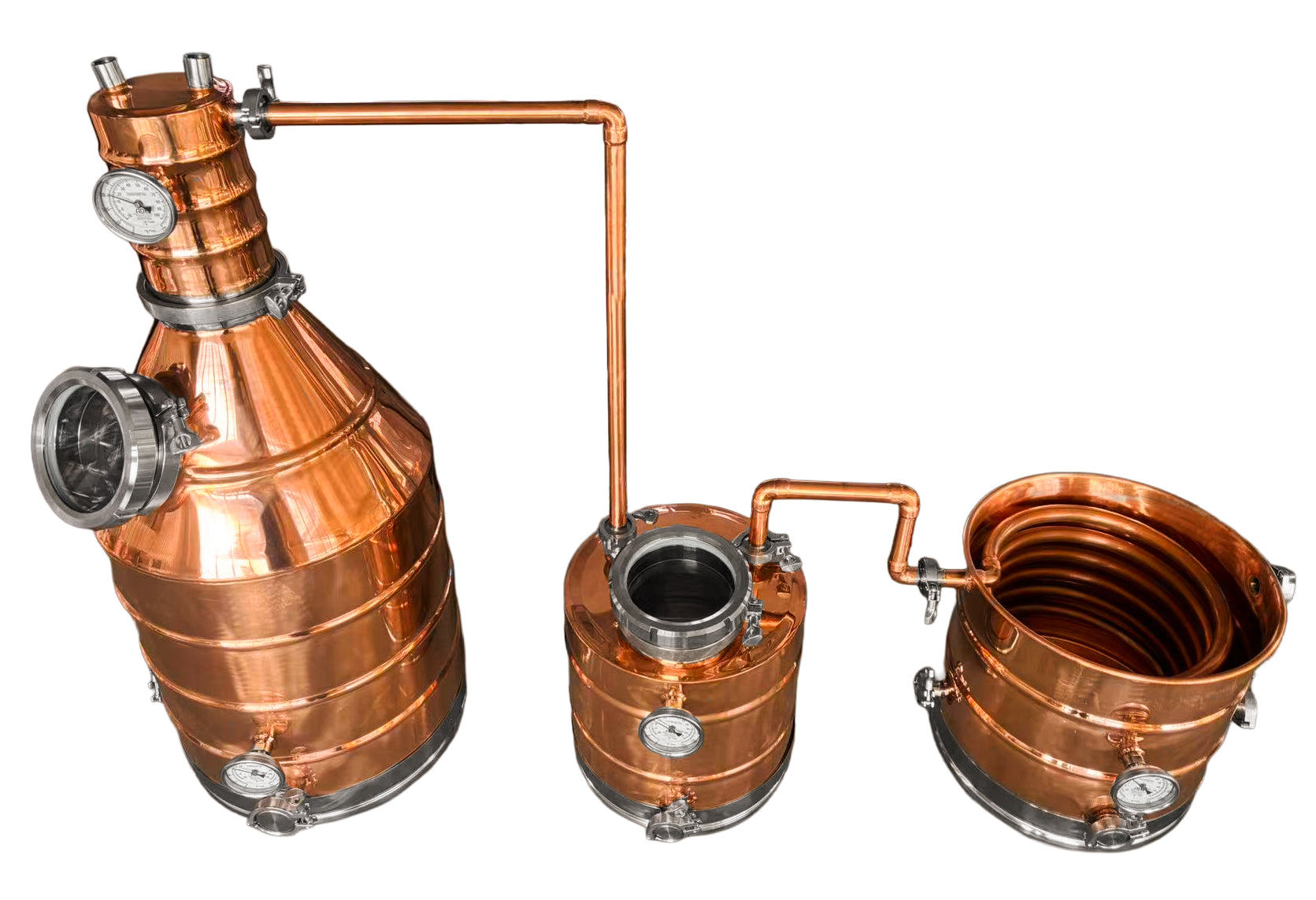

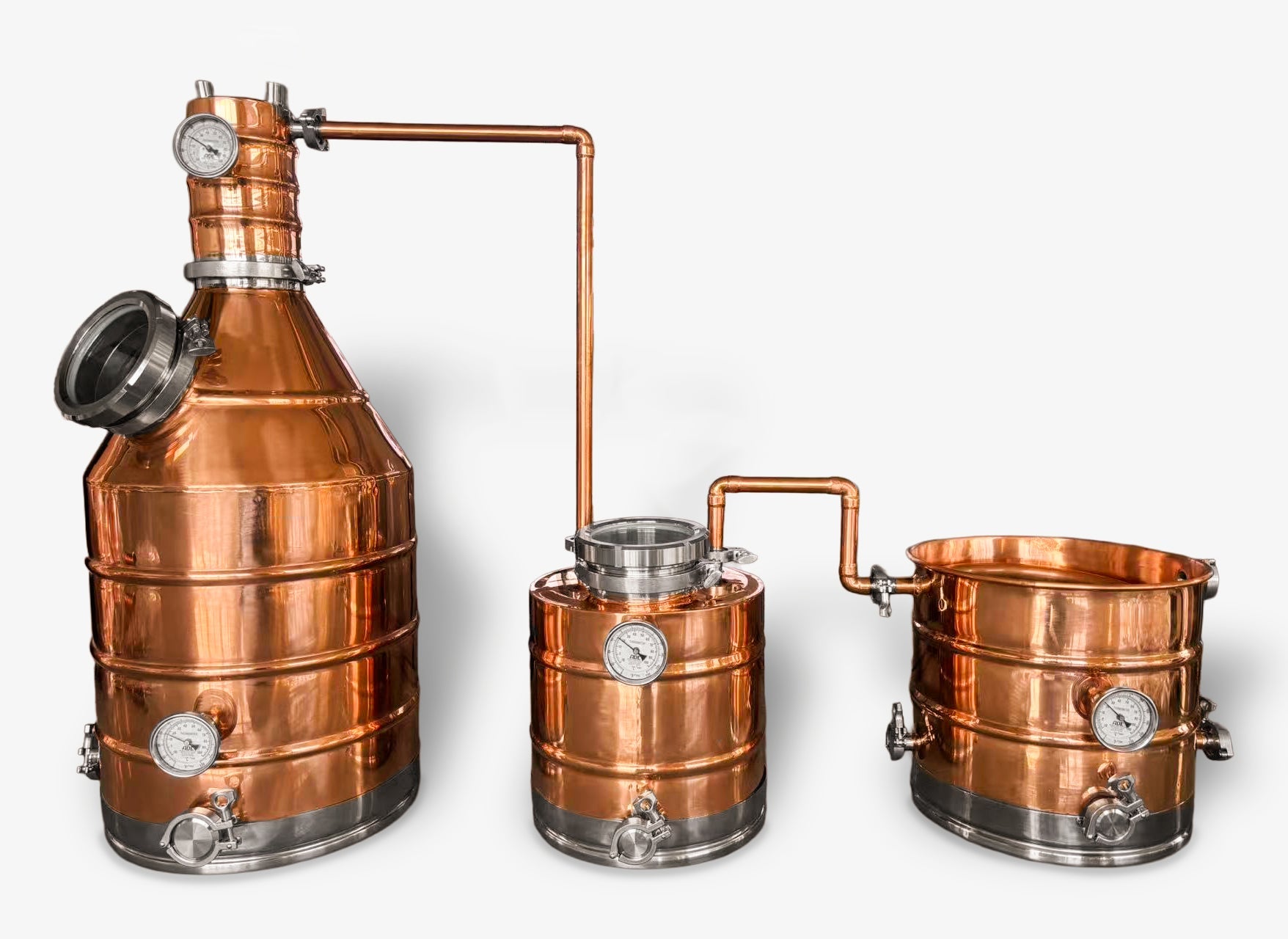

Highlander Series 20 Gallon Copper and Stainless Steel Pot Still with Thumper

The Highlander Series 20 Gallon Copper and Stainless Steel Pot Still with Thumper is a traditionally inspired, high-capacity distillation system engineered for distillers who demand uncompromising quality, durability, and authentic spirit character. Designed using proven pot still and thumper principles, this system delivers smooth vapor flow, enhanced proof potential, and consistent results across large production runs.

Built from 16 and 18 gauge copper and reinforced with stainless steel components, this still offers exceptional structural strength and thermal stability. Unlike mass-produced systems that rely on soft soldered seams, the Highlander Series is constructed using TIG brazing for all joints, producing cleaner, stronger, and more heat-resistant connections. Every component - from the oversized boiler to the properly matched thumper and efficient coil condenser, is purpose-built to perform reliably while honoring traditional distillation methods.

Key Features & Build Highlights

• Highlander Series traditional pot still design with matched thumper system

• Constructed from 16 and 18 gauge copper for superior durability and heat consistency

• TIG brazed joints throughout for maximum strength, cleanliness, and leak resistance

• 20 gallon copper and stainless steel boiler ideal for large-capacity batch distillation

• 6” tri-clamp combination sight glass and fill port for easy charging and visual monitoring

• Boiler thermometer for accurate liquid temperature tracking

• Head temperature thermometer for precise vapor management

• 1.5" tri-clamp boiler drain with valve for fast, controlled emptying

• Dual 2” tri-clamp heating element ports for high-output electric heating setups

• 1” lyne arm connection designed for smooth, traditional vapor flow

• Matched 8 gallon thumper for higher proof and enhanced flavor development

• Thumper features:

  • 6” tri-clamp combination sight glass and fill port

  • Integrated thermometer

  • 1.5" tri-clamp drain with valve for easy servicing

• Efficient copper coil condenser for dependable vapor knockdown

• Copper and stainless steel condenser water bath with thermometer for precise cooling control

• Modular tri-clamp construction for easy cleaning, maintenance, and upgrades

Technical Specifications

• Series: Highlander Series

• Boiler Capacity: 20 Gallons

• Thumper Capacity: 8 Gallons

• Copper Thickness: 16 & 18 Gauge Copper

• Materials: Copper and 304 Stainless Steel

• Boiler Sight Glass / Fill Port: 6” Tri-Clamp Combination

• Thumper Sight Glass / Fill Port: 6” Tri-Clamp Combination

• Boiler Drain: 1.5" Tri-Clamp with Valve

• Thumper Drain: 1.5" Tri-Clamp with Valve

• Heating Element Ports: (2) 2” Tri-Clamp

• Lyne Arm Connection: 1”

• Condenser Type: Copper Coil

• Condenser Bath: Copper & Stainless Steel with Thermometer

• Temperature Monitoring: Boiler, Head, Thumper, and Condenser Bath

• Joint Construction: TIG Brazed (Not Soldered)

Why TIG Brazing And Heavy-Gauge Copper Matter

TIG brazing creates joints that are significantly stronger and cleaner than soldered seams, offering superior resistance to heat cycling, leaks, and structural fatigue. Combined with 16 and 18 gauge copper, this construction ensures stable heat transfer, consistent vapor behavior, and long-term reliability. This is professional-grade fabrication built for serious distillation.

What The Thumper Does

The included 8 gallon thumper acts as a secondary distillation chamber positioned between the boiler and condenser. As vapor passes through the liquid inside the thumper, it undergoes an additional distillation step during the same run.

Benefits include:

• Higher proof output without stripping flavor

• Richer, fuller spirit character

• Ability to charge with low wines, mash, or botanicals

• Improved consistency and smoother cuts

The thumper is properly sized to balance vapor flow from the 20 gallon boiler for optimal performance.

Recommended Heating System

For the power demands of this system, we recommend pairing it with:

🔌 11,000 Watt Electric Still Controller & Heating System
https://shop.distillery-equipment.com/products/11-000-watt-moonshine-still-controller-electric-heating-elements-tri-clamp-boxes

This system provides the output and control necessary to efficiently operate the dual 2” heating element ports.

Warranty

This still is warrantied for one (1) year against manufacturer’s defects and leaks.
