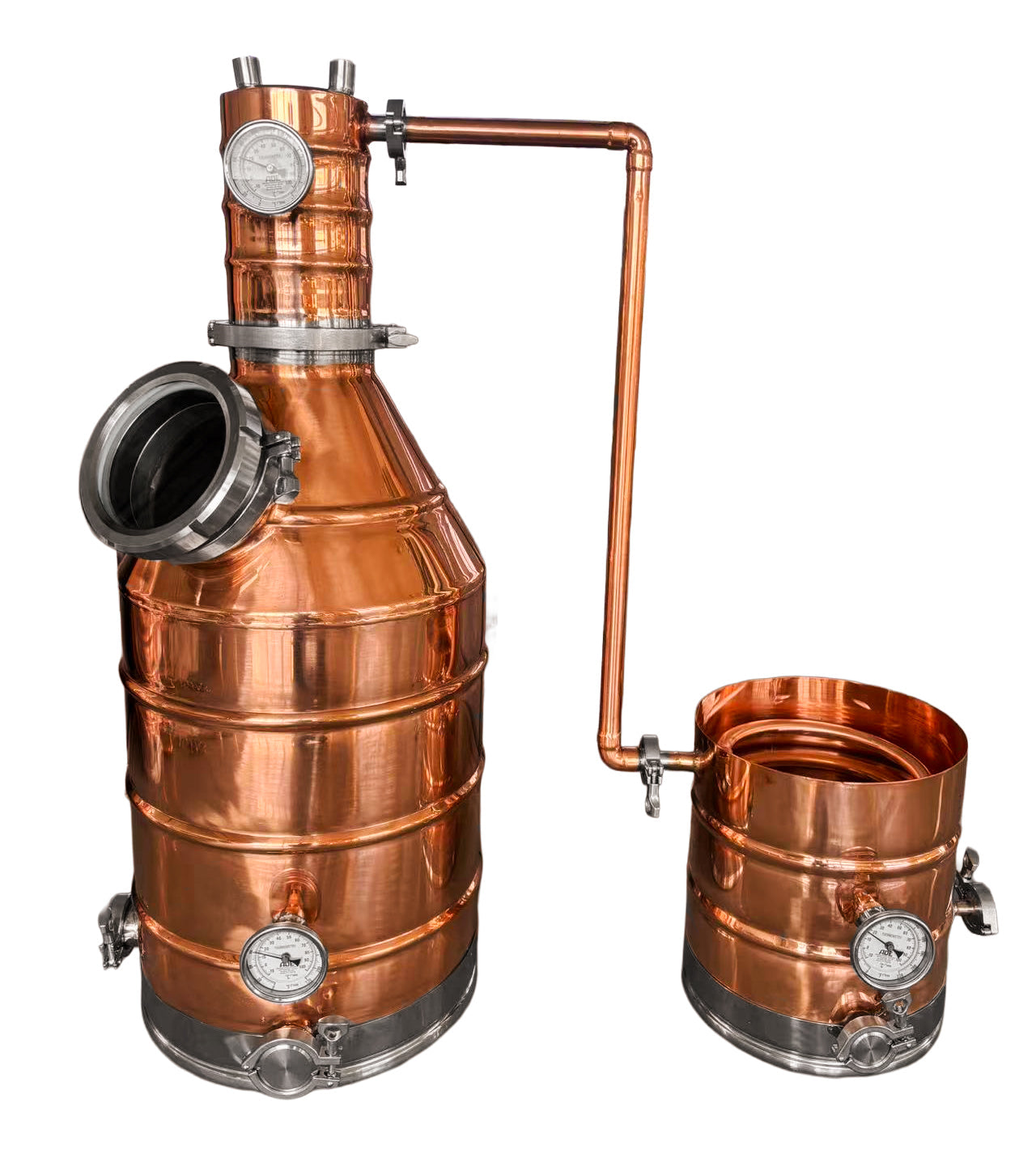

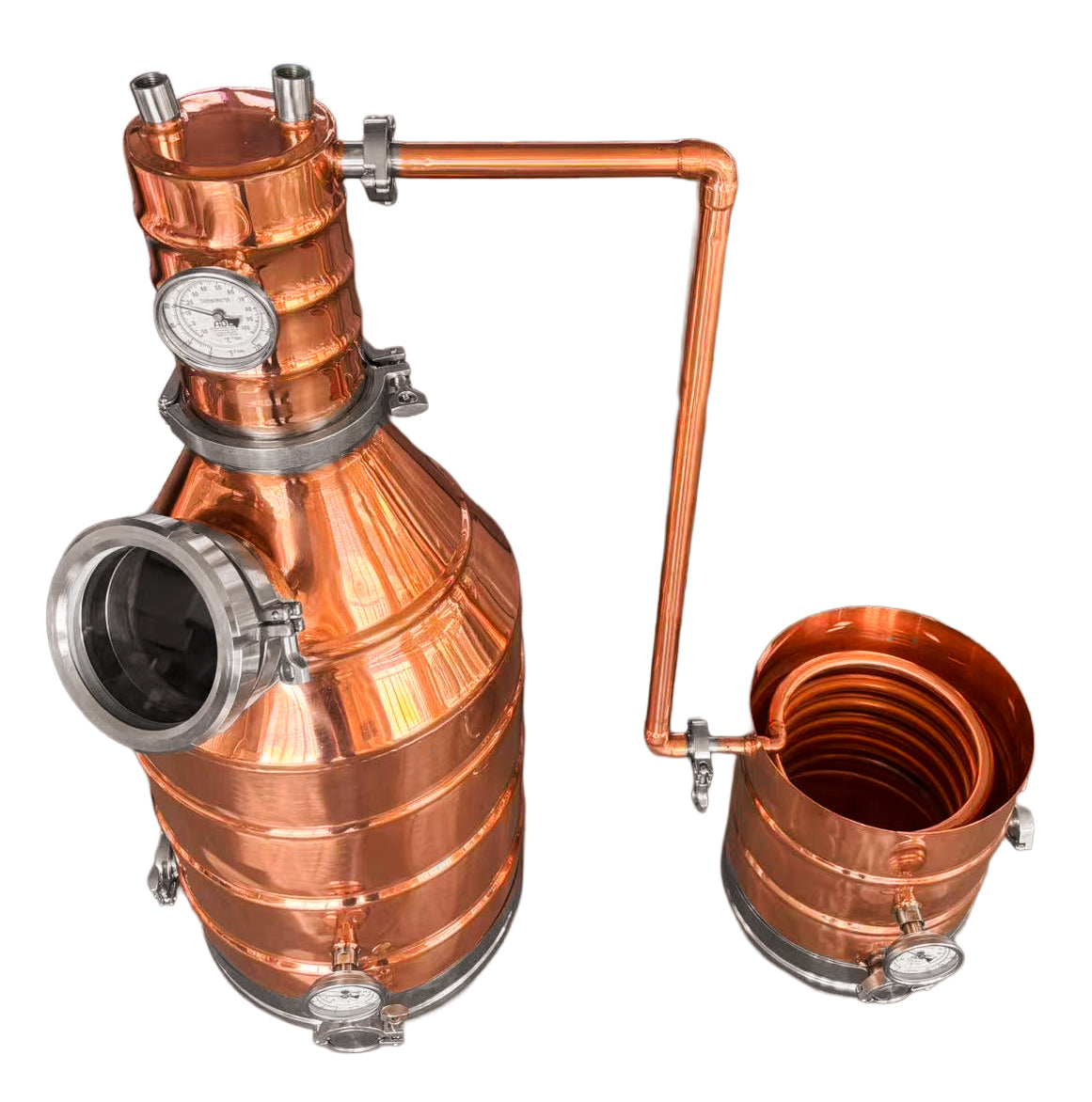

Highlander Series 20 Gallon Copper and Stainless Steel Pot Still with Coiled Condenser

$2,184.00
Unit price per

The Highlander Series 20 Gallon Copper and Stainless Steel Pot Still is a traditionally styled, large-capacity distillation system engineered for serious distillers who value craftsmanship, durability, and authentic performance. Designed around classic pot still principles, this system delivers smooth vapor flow, excellent heat stability, and consistent results across demanding production runs.

Constructed from 16 and 18 gauge copper and reinforced with stainless steel components, this still is built for long-term reliability. Unlike mass-produced equipment that relies on soft soldered seams, the Highlander Series is assembled using TIG brazing for all joints, producing stronger, cleaner, and more heat-resistant connections. With integrated sight glass access, precision temperature monitoring, and high-power heating capability, this still is purpose-built for traditional distillation at scale.

Key Features & Build Highlights

Highlander Series traditional pot still design
Built from 16 and 18 gauge copper for superior strength, heat consistency, and vapor refinement
TIG brazed joints throughout for maximum durability and leak resistance
20 gallon copper and stainless steel boiler ideal for large batch distillation
4” tri-clamp combination sight glass and fill port for easy charging and visual monitoring
Boiler thermometer for accurate liquid temperature control
Head temperature thermometer for precise vapor management
1.5" tri-clamp drain with valve for fast, controlled boiler emptying
Dual 2” tri-clamp heating element ports for high-output electric heating setups
1” lyne arm connection designed for smooth, traditional vapor flow
Modular tri-clamp construction for easy cleaning, servicing, and future upgrades

Technical Specifications

Series: Highlander Series
Boiler Capacity: 20 Gallons
Copper Thickness: 16 & 18 Gauge Copper
Materials: Copper and 304 Stainless Steel
Sight Glass / Fill Port: 4” Tri-Clamp Combination
Boiler Drain: 1.5" Tri-Clamp with Valve
Heating Element Ports: (2) 2” Tri-Clamp
Lyne Arm Connection: 1”
Temperature Monitoring: Boiler and Head
Joint Construction: TIG Brazed (Not Soldered)

Why TIG Brazing And Heavy-Gauge Copper Matter

TIG brazing creates joints that are significantly stronger and cleaner than soldered seams, improving resistance to heat cycling, leaks, and structural fatigue. Combined with 16 and 18 gauge copper, this construction ensures even heat distribution, stable vapor behavior, and long-term performance. This is professional-grade fabrication designed for serious distillation.

Recommended Heating System

To properly power this large-capacity still, we recommend pairing it with:

🔌 11,000 Watt Electric Still Controller & Heating System
https://shop.distillery-equipment.com/products/11-000-watt-moonshine-still-controller-electric-heating-elements-tri-clamp-boxes

This system provides the output and control required to efficiently operate the dual 2” heating element ports.

Warranty

This still is warrantied for one (1) year against manufacturer’s defects and leaks.
